JUKI MEB3200SSKAC EYELET BUTTON HOLE COMPLETE SET
63,000.00

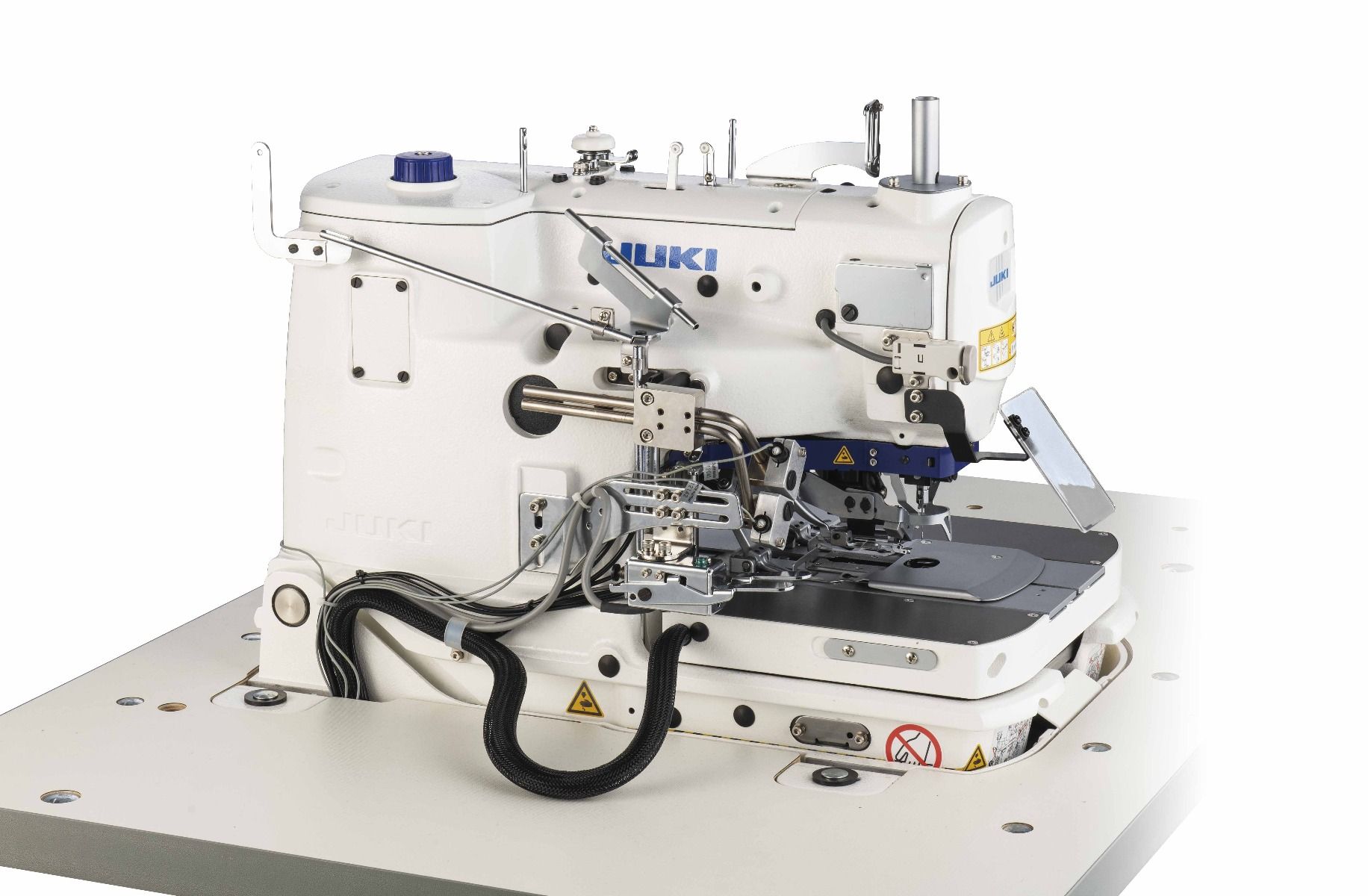

The JUKI MEB-3200SSKAC is a specific configuration of the JUKI MEB-3200 series computer-controlled eyelet buttonholing industrial sewing machine, designed for men’s and ladies’ wear with features like active tension control and a direct-drive motor.
Free Installation
Delivery depend on area
Description
The specific letters in the model name (SSKAC) denote its configuration:
- SS: Indicates the application for men’s and ladies’ wear, with a “longer remaining thread” trimming style.
- K: Specifies the power requirement as single-phase 220-240V (for CE).
- A: Indicates the inclusion of a needle thread clamp device as an option/standard feature.
- C: Refers to a specific version within the series (MEB-3200C Series), often featuring a color LCD touch panel and IoT integration capabilities.
Key Features and Specifications
The JUKI MEB-3200SSKAC offers a range of advanced features designed to ensure high-quality and efficient production of eyelet buttonholes.
- Active Tension Mechanism: It is the first machine in the world to incorporate this feature, which electronically controls needle and looper thread tensions via the operation panel. This allows for precise and consistent seam quality, and data can be registered for different patterns, making it easy to reproduce the same sewing conditions.
- Direct-Drive Motor: The machine utilizes a compact AC servomotor directly connected to the hook-driving shaft, providing quick startup, increased stopping accuracy, and reduced power consumption compared to V-belt systems.

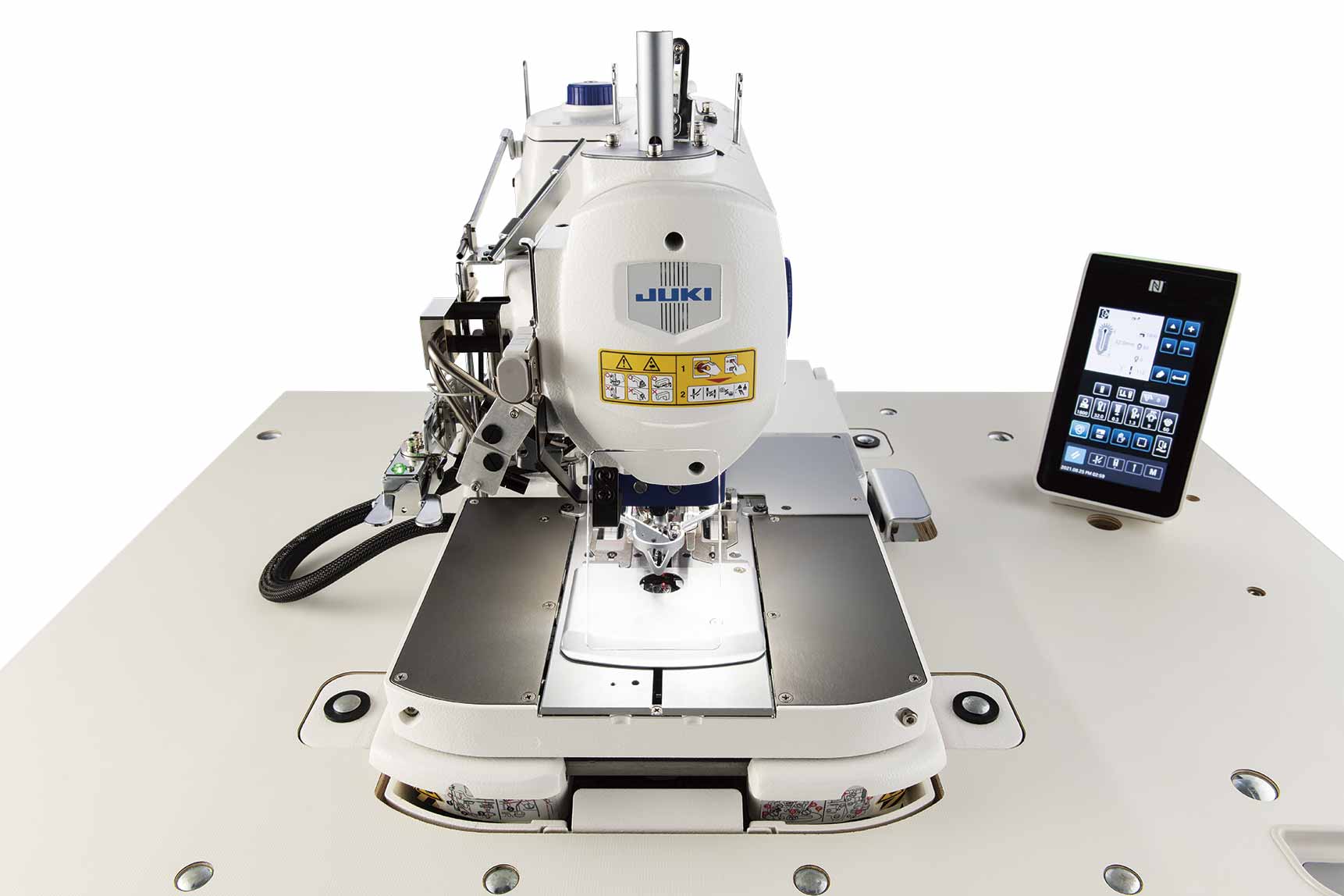

- User-Friendly Operation Panel: It is equipped with a large, highly visible color LCD touch panel for intuitive setting of stitch shapes and sewing functions, reducing data input time and minimizing operational mistakes.
- Versatile Buttonholing: The computer control allows for the selection and setting of various eyelet and straight buttonhole shapes, with up to 89 different patterns storable in its memory.
- Automated Knife Pressure Control: The pressure of the vertically driven cloth-cutting knife is automatically controlled by a stepping motor and can be adjusted on the operation panel, preventing irregular cutting and reducing setup time.
- Improved Maintainability and Environment: The computer-controlled design simplifies internal mechanisms, and a gas-spring supported head makes cleaning and threading easier. It also produces less noise and automatically reclaims cloth chips for a cleaner workspace.
Technical Specifications
According to JUKI documentation, here are some key specifications for the MEB-3200SS model:
| Specification | Detail |
|---|---|
| Max. Sewing Speed | 400 – 2,200 stitches/min |
| Sewing Length | 10 – 38 mm (with thread trimmer) |
| Needle Type | DO×558 (Nm90 – Nm110 at delivery) |
| Stitch System | 1-needle, double chainstitch (with gimp) |
| Power Requirement | Single-/3-phase, 550VA |
| Total Weight | 185 kg (approx. 407 lbs) |
